Lucas Components
(up to 1954)
for AC's post-war 2 Litre Saloon
Most of the information here comes from period Lucas publications. A few details may be incorrect, and I have added my own comments where necessary. The Lucas data covered years up to 1954, hence 1955 onwards is not shown. For some reason, Lucas omitted 1947 from many references.
Notes in green are by the webmaster
Lucas model and part numbers
Ammeter
Type CZU20
1948-50: 36037A (white print on black) (30-0-30 reading)
1951-54: 36105A (brown print on cream) (30-0-30 reading)
Battery
1948-51: SLT13A
1952-54: GT11A
Original batteries had mounting flanges at each end held down by a pair of 8 3/4" long 1/4" dia. rods.
Cable sundries
Rubber wiring grommet bore for hole: 115806
Rubber wiring grommet bore for hole: 858063
Single cable clip (nickel-plated) 9/32" bore, 0.196" screw hole: 187045
Chassis cable clip 2 long: 187094
Cable strap: 850882 aluminium 7" long
Single cable snap connector: 900288
4-way cable snap connector: 850641
Snap-in Terminal End for above: 900269
Coil
1947-54: 45020A/B, Model Q12, black finish, earth return (positive)
Control Box
1948-51: 37065E Model RF95/2 fitted with cut-out 33075 (LRT9/2)
1952-54: 37048E Model RF96/1 superceded by 37174 Model RB106/1 fitted with cut-out 33075 (LRT9/2)
The earlier control box incorporates the fuses and there is no separate fuse box (although very early wiring diagrams show an extra fuse for side/tail lamps). The series 1 and 2 AC handbooks illustrate the wrong control box, although the earliest 1947/48 ACs may have had the one illustrated?
Distributor
40143F
Model DX6A, Type D8, clockwise, earth return. ECM curve number 396. Range=16 to 18 degrees.
Parts for above:
Cap: 407043
Rotor-arm: 407030
Contact set: 407050
Condenser: 407044
Spring set (auto-advance): 407256/S
Weight: 415729
Bushing (top): 404374
Bushing: 410590
Cam: 407168
The AC handbook also refers to earlier distributors part numbers 40143A, B or D, with lower lift cams requiring smaller contact breaker gap (0.011 vs 0.018 ). Lucas parts list shows all versions to have the same cam (407168), and only 40143F fitted to the post-war AC.
Fuse Box
1951: 385211 Model SF5/2 (clip-fixed cover)
1952-54: 37154A Model SF4 (screw fixed cover) (2 x 35A and 2 x 50A fuses)
Generator
22428A, Model C45PV-3, Type D8, earth return.
Parts for above:
Cover band: 228022
Brush set: 238061 Quantity per set=2. Part number for individual brush: 238035 (dimensions: Width=1.00 , height=0.750 , thickness=0.312 , lead length=2.406 ). Brush index no.1. Eyelet bore=0.189 .
Bearing bush: 238567 (dimensions: ID=0.628 , OD=0.754 , width=0.968 )
Bearing (drive end): 189308 Type 117 ball-race metric size (dimensions: ID=17mm, OD=47mm, width=14mm)
Field coils: 238784
Horns
1948-49: 69021A (low note) and 69022A (high note). Model WT29 black finish
1950-54: 69011F (low note) and 69012F (high note). Model WT614 black finish
The earlier WT29 horns can be identified by their circular trumpets.
Horn relay
1950-54: 33135B
Early cars had no horn relay. They were earthed via the horn switch when pressed, requiring a thick lead for the heavy current.
Lamps
Fog Lamps
1950-51: 55010A Model FT57, 6 3/8 diameter, shallow domed fluted lens. Bracket: 056117.
1952: 55055B Model SFT700S, 7 diameter, flat/block lens.
1952 later: 55084A Model SFT700S, 7 diameter, flat/block lens.
1953-54: 55055B Model SFT700S, 7 diameter, flat/block lens.
Headlamps (UK) Model F700 Mk III, chrome-plated reflector, 8 .
1948-49: 50799D (LH) and 50579K (RH). Rubber gasket 553561. Bulb 354 (LH lamp), 325 (RH lamp). Rim 552912. Light unit 552402 diamond ("cat's eye") pattern.
1950: 50445K (LH) and 50446K (RH). Rubber gasket 552915. Bulb 354 (LH lamp), 325 (RH lamp). Rim 552913. Light unit 552402 diamond ("cat's eye") pattern.
1951-52: 50799D (LH) and 50579K (RH). Rubber gasket 553561. Bulb 354 (LH lamp), 325 (RH lamp). Rim 552912. Light unit 552402 diamond ("cat's eye") pattern.
Superceded by 51344A, light unit 553921 block pattern lens.
1952-53: 50959 LH and RH. Rubber gasket 553561. Bulb 354. Rim 552912. Light unit 553921 block pattern lens.
1954: 51344A LH and RH. Rubber gasket 554279. Bulb 354. Rim 554439. Light unit 553921 block pattern lens.
AC's handbook simply states bulb 354 for the headlamps in the UK.
Although it states 8 inches above, that is the outer diameter of the mounting bowl and the decorative rim. Lens diameter is approximately 7 inches, as the model name F700 implies.
Headlamps (Dip left export)
1948-49: 50799D
1950: 50445K
1951-52: 50799D
1952-53: 50959A
1954: 51344A
Headlamps (Dip right export)
1948-49: A50799D
1950-52: A50445K
1952-53: 50528M
1954: 51345A
Headlamps Europe (excluding France). Vertical dip.
1951- 52: B50799D
1952- 53: 50961A
1954: 51346A
Headlamps France
Model F700-EF. Vertical dip.
1949: 50808D
1950: 50790E Model F700-1EF
1951- 52: 50808D
1952- 53: 50978A
1954: 51411A
Number plate lamp
1948-54: 53107A (superceded by 53109) Model 474. Bulb: 989.
Reversing lamp
1953-54: 52162B/D Model 488. Bulb 380.
Side lamp
1948: 52120B/E. Model 461-1 (2 11/32 diameter). Bulb 207.
1949: 52143A (superceded by 52160). Model 488 (2 23/32 diameter). Bulb 222.
1950-51: 52160A. Model 488 (2 23/32 diameter). Bulb 222.
1952-54: 52143A (superceded by 52160). Model 488 (2 23/32 diameter). Bulb 222.

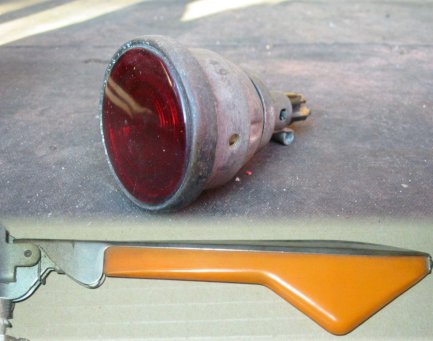

Stop tail lamp
1948: 53082A (superceded by 53194). Model 461. Rim (including lens): 572815 (superceded by 572792). Bulb: 380.
1949- 54: 53178B/D Model 488. Rim: 572734. Bulb 361 (superceded by 380). Lens: 572704 (2 3/8 diameter).
Side and tail lamps changed from model 461 to 488 around mid to late 1949.
Stop tail number plate lamp (export)
1948: 53077A Model ST52D. Superceded by 53244B Model 525.
Tail and number plate lamp (Norway)
1948-52: 53007B Model AT201L
Panel lamp
1951-54: 39007A Model PL31 (bulb holder). Bulb: 987.
Ignition warning light
1948-54: 38013B (superceded by 38049B) Model WL3-1 L19 red window. Bulb 970.
Mirror
1947-54: 062552 Model 580-103, frameless, chrome-plated bracket, black painted clip. Bracket: 620962. Mirror: 580797 flat (5 15/16 x 2 7/16 ).
Lucas data only shows this mirror fitted from 1950 onwards, but earlier cars also had this mirror from new.
Starter motor
1948-49: 256011 superceded by 25514
1950-54: 25532A/B superceded by 25514
25514A Model M418G, type G76. (Also fitted to Land Rover 1948).
Brush set: 255659 (quantity 2). Individual brushes: 263018. Dimensions: Width=0.753", height=0.559", thickness=0.345", lead length=3.75". Brush index no. 1.
Bearing bush: 255491. Dimensions: ID=0.626 , OD=0.752 , width=0.750 .
Pinion and sleeve: 255672
Pinion spring: 255727
Bearing bush: 270883
Bearing intermediate bracket: 255853
Field coils: 255625
Steering column control
1948-51: 32754B/F, Model CC3, Type D/16A/47.
1952-54: 32848A/E, Model CC3.
Suppressor
1954: 78114A Type WS5 for distributor cap center terminal. Resistor type of suppressor.
Switches
Dipper switches
1948-54: 31284A Model FS22-1
Foglamp switch
1949-50: 31285A superceded by 31287.
1951-54: 31201B Model PS7-1
Foglamp switch knob
316231
Lighting and ignition switch
1948-49: 34035A superceded by 34055. Model PLC6, black.
1950-54: 34062A superceded by 34056. Model PLC6, cream with chrome bezel.
Panel switch
1947-49: 31285A superceded by 31276 Model PS6, black.
1950-54: 31271A superceded by 31339 Model PS6, cream with chrome bezel.
Starter solenoid
1949: 76022B Model ST900-1. Rubber cap end: 760130
1950-54: 76411D Model ST950. Rubber cap end: 760130
Starter switch
1947-1949: 31300A superceded by 31107. Model SS5, black.
1950-54: 31272A. Model SS5, cream with chrome bezel.
Stop lamp switch
1948-51: 31281B Model 54C
Stop lamp switch spring
315543 (3 long)
Windscreen wiper switch
1951-54: 31271A superceded by 31339 Model PS6, cream with chrome bezel.
Earlier ACs had a control box rather than a switch.
Terminal block
1948-53: 37082A Model TB8 (8-way snap connector)
1953-54: 37088A
Trafficators
1948-50: 54018D Model SF34N. (Staybrite finish). Arm cover: 581124. Fixing plate 538316 Type 15G. Bulb 256. (Superceded by 053981 Model SF80).
1951-52: 54039A. Model SF34N. (Staybrite finish). Arm cover: 581124. Bulb 256. (Superceded by 053981 Model SF80).
1953-54: 54044D. Model SF80. (Staybrite finish). Arm cover: 582027. Fixing plate 582087 Adaptor plate. Bulb 256.
053981. Model SF80. (Staybrite finish). Arm cover: 582027. Moulded arm: 582026. . Fixing plate 582087 Adaptor plate. Bulb 256.
Festoon type bulb for trafficator: 256, 3 watts (7.5 x 35.6mm).
Windscreen wipers
1948-49: 072599N and 072599Q. Model CR1, type D8, 120 degrees.
Motor: 75055K with 072599N, and 75055L with 072599Q.
Wheelbox: 72590 (spindle length 3 )
Control box: 72593
Rack assembly: 736177
Rack assembly length: 27 3/8
Inner cable rack: 736024
Rack casing, motor to wheelbox: 739832
Rack casing, 4 nearside wheelbox: 740032
Rack casing, 3 offside wheelbox: 740031
Rack casing, wheelbox to control box, offside: 739933
Rack casing, wheelbox to control box, nearside: 739933
Guide tube, offside wheelbox: 735895
Grommet: 729423
1950: 072693D and 072693E. Model CR1, type D11, 120 degrees.
Motor: 75055K with 072693D, and 75055L with 072693E.
Wheelbox: 72590 (spindle length 3 )
Control box: 72593
Rack assembly: 736364
Rack assembly length: 27 3/8
Inner cable rack: 736024
Rack casing, motor to wheelbox: 739832
Rack casing, 4 nearside wheelbox: 740032
Rack casing, 3 offside wheelbox: 740031
Rack casing, wheelbox to control box, offside: 739933
Rack casing, wheelbox to control box, nearside: 739933
Guide tube, offside wheelbox: 735895
1951: 072699 (130 degrees) and 072699A (120 degrees) and 072699B (120 degrees). Model CR4, type D12
Motor: 75055K with 072699, and 75075J with 072699A, and 75075K.
Wheelbox: 72590 (spindle length 3 )
Rack assembly: 736307
Rack assembly length: 44 13/16
Rack casing, motor to wheelbox: 739838
Rack casing, 3 offside wheelbox: 740031
Rack casing, wheelbox to wheelbox: 739934
Grommet: 729423
1951-54: 072776 Model CRT14, type D12, 120 degrees.
Motor: 75153A
Wheelbox: 72590 (spindle length 3 )
Rack assembly: 736307
Rack assembly length: 44 13/16
Rack casing, motor to wheelbox: 739838
Rack casing, 3 offside wheelbox: 740031
Rack casing, wheelbox to wheelbox: 739934
Grommet: 729423 (or 729313 or 735842?)
Wiper motor parts
Brush set: 729367
Worm wheel, pinion and bearing: 738988
Windscreen wiper arms
1948-50: 735098 adjustable type (7 to 9 ). Standard fixing (rubber peg).
1951-54: 737557 (LH) and 737453 (RH). Cranked to 15 degrees. Length 9 . Wrist action fixing.
Wiper blades
1948-50: 727759 Standard fixing, chrome finish, 5 ply rubber, 9 long.
1951-54: 737572 superceded by 741680 Wrist action fixing, chrome finish, moulded rubber, 10 long.
The earlier CR1 model has wipers (straight-arms) that park off the screen, and are parked there by hand (via the control box). The later CR4 and CRT14 models park the wipers on-screen, and so need cranked/handed arms. These park at the bottom edge with blades parallel to the screen frame. Model CRT14 has a thermostatic cut-out.
