Brake Compensator

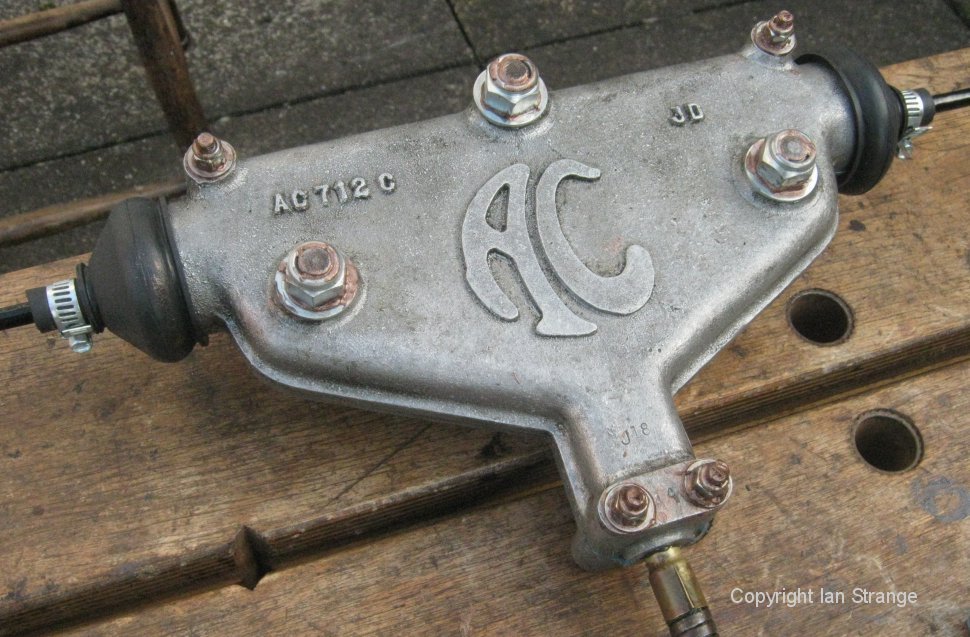

Assembled brake compensator for mechanical rear brakes. Note that the unit shown does not have the correct rubber boots. I fitted trackrod end boots and fuel hose, since I could not find suitable rubbers to fit.

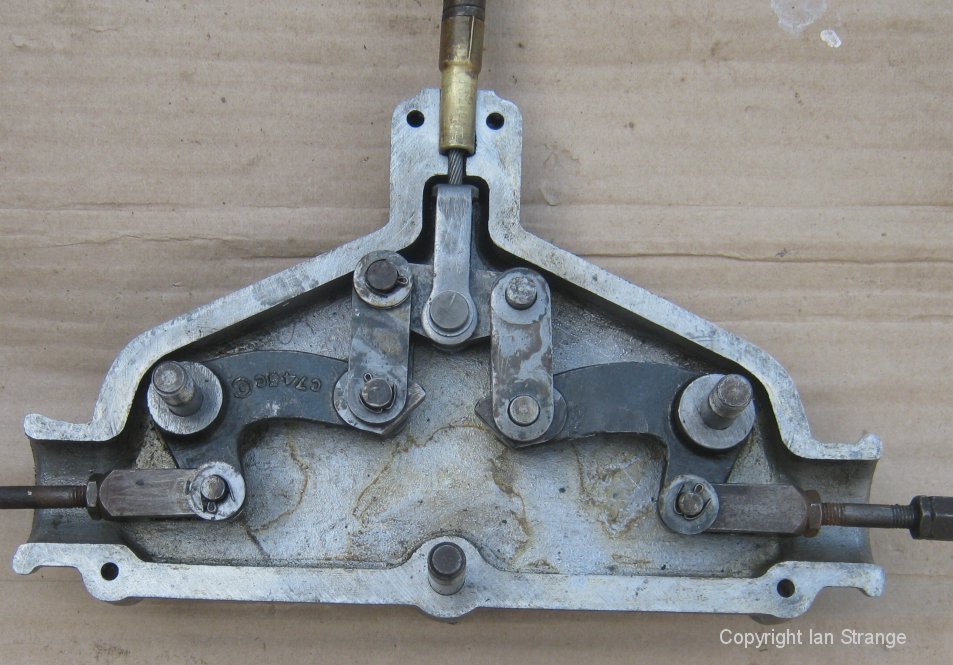

Now you know how it works. Made by AC (not Girling), it is a much neater balance mechanism than found on many other vehicles.

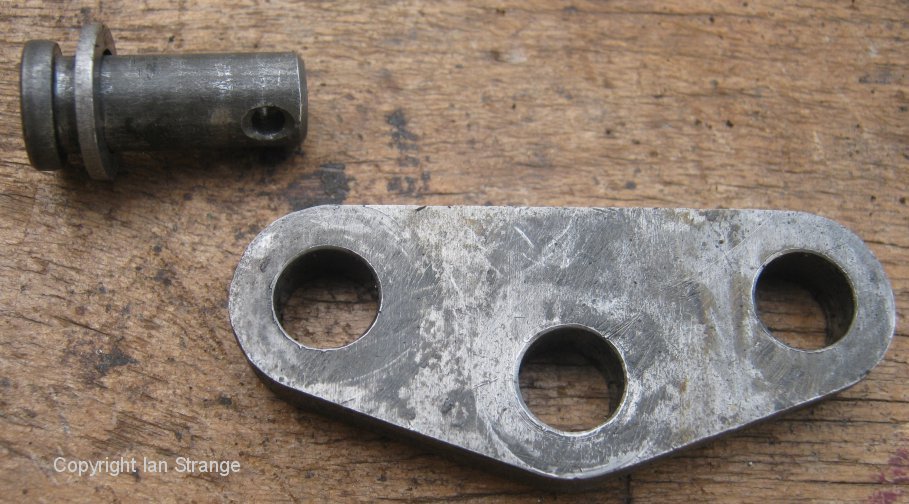

The balance link with its clevis-pin.

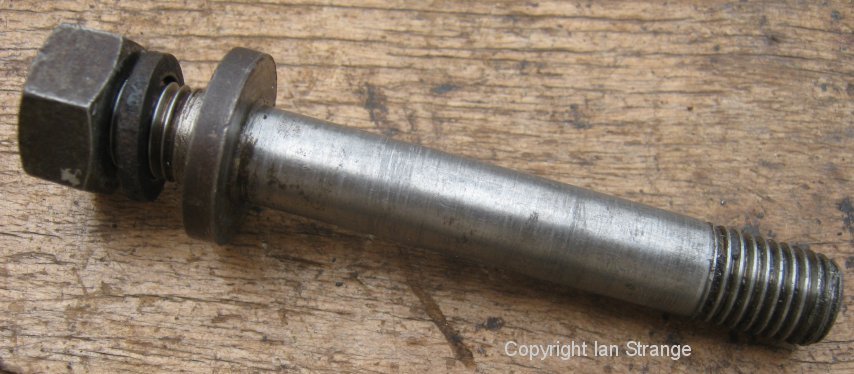

One of the three flanged studs that fasten the casing togther. Two of them also double as pivots for the bell-cranks.

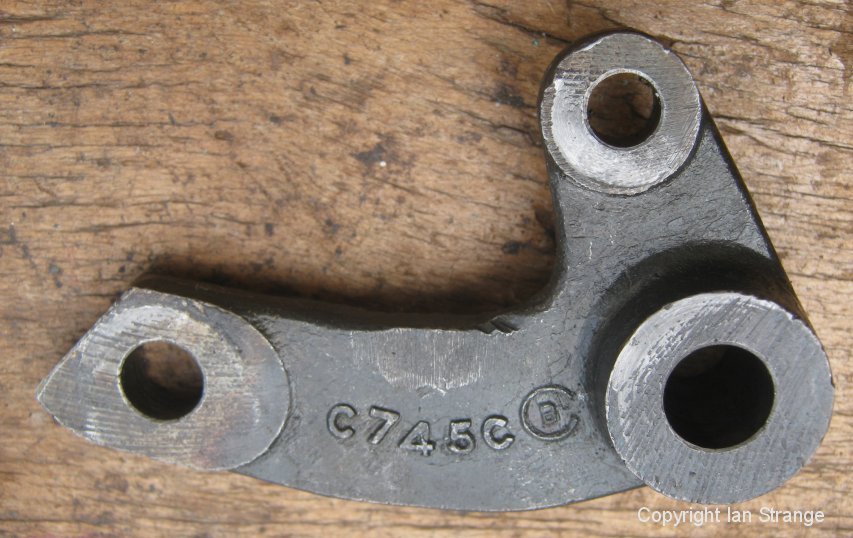

One of the two bell-cranks.

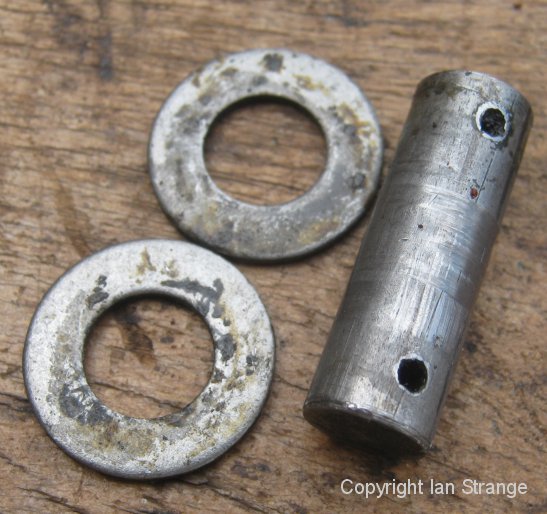

One of the pivot pins with holes for split-pins.
